1 SunnyBoy 3800U Inverter #1
- Data Sheet
- Install Guide

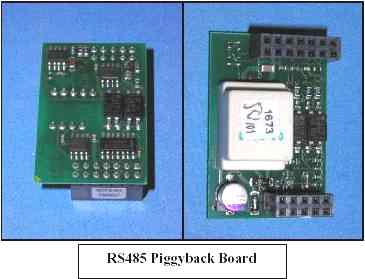

21 BP Solar 4175 175W Solar Panels - Data Sheet 1 RS485 Piggyback Communication Module
|
|
|
|
1 SunnyBoy 3800U Inverter #2
- Data Sheet
- Install Guide
24 BP Solar 4175 175W Solar Panels - Data Sheet 1 RS485 Piggyback Communication Module
|
|
 | ||
|
Intel PC running SMA-America Sunny Data software
Integrity Instruments 1 XP485-9E RS232 - RS485 PC Adapter 1 PS9J UL listed 9 VDC wall transformer 2.5mm jack |
|
Data from the solar inverters is collected daily with software running on a
PC computer at 8 second intervals over an RS-485 communication bus.
Detailed daily data collected since June 16th 2006.
Custom scripts transfer and parse output data from the monitoring software
and create new graphs, charts, and calculated data in close to realtime within
one minute intervals.
